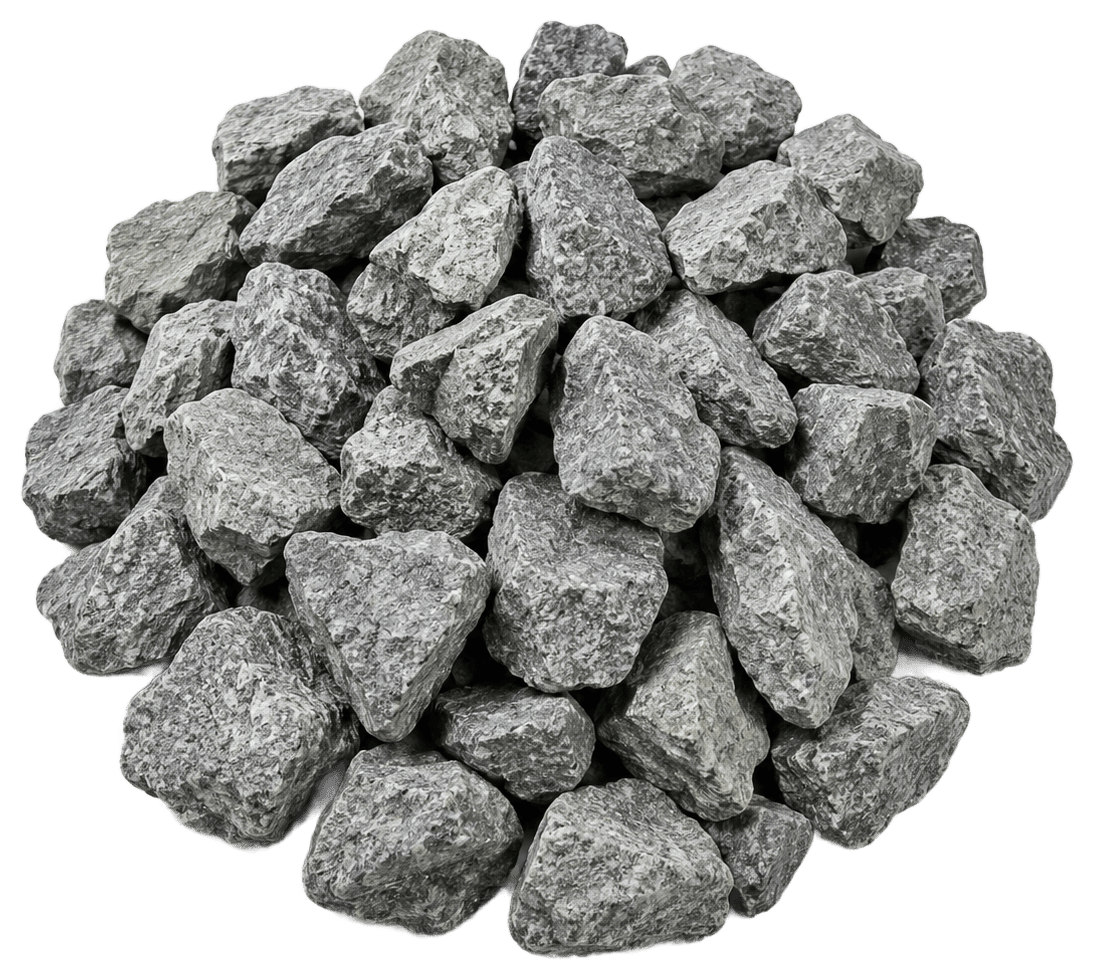

Crushed stone aggregate at 20mm nominal size for RCC slabs, beams, columns and foundations — supplied by OM Group across North and South Goa through its own stone-crushing operation.
20mm is commonly used as the coarse aggregate size for conventional reinforced-concrete work in India — slabs, beams, columns and foundations — where member dimensions, reinforcement spacing and the project specification permit it. OM Group produces 20mm aggregate through its own stone-crushing operation and supplies it across North and South Goa to construction sites, RMC plants, road and infrastructure contractors, and government projects.
Aggregate is the stone fraction of concrete and accounts for most of a mix by volume. Coarse aggregate is the fraction retained on a 4.75mm sieve; fine aggregate such as sand passes it. 20mm aggregate is a coarse aggregate, and across Indian construction it is among the most widely specified coarse aggregate sizes for structural concrete.
The figure refers to nominal size, not a guarantee that every particle measures 20mm. IS 383:2016, the Indian standard for aggregates in concrete, specifies coarse aggregate in nominal sizes of 10, 12.5, 16, 20, 40 and 63mm.
20mm is commonly specified because it balances two competing requirements. Larger aggregate has less surface area per unit volume, so it generally requires less cement paste to coat, which tends to make it more economical per cubic metre than smaller sizes. At the same time it remains small enough to place through the reinforcement spacing found in conventional members. Where that balance does not hold — thin sections, congested steel, or a specification that says otherwise — a different size is used.
In Indian construction trade usage, terms such as metal, blue metal or jelly are commonly used for crushed stone aggregate, and 20mm metal generally refers to this product. Terminology varies by region and application, so confirm the size specification rather than relying on trade names alone when ordering.
This causes more ordering confusion than any other point on this page. Single-size aggregate of nominal size 20mm describes material where the bulk passes the 20mm sieve and is largely retained on the sieve below it — a narrow band of one size. Graded aggregate of nominal size 20mm describes material containing a designed distribution of sizes below 20mm as well, within the limits IS 383:2016 sets for graded material.
Crushing plants generally produce single-size grades, which are then blended in proportion at the mix design stage to reach the combined grading a concrete design requires. This is why RCC work is commonly supplied as separate 20mm and 10mm deliveries rather than one pre-blended product, and why a mix design specifies proportions rather than a single material.
If your specification calls for graded aggregate rather than single-size, state that requirement with your enquiry so the material and quotation can be confirmed accordingly.
IS 383:2016 sets grading limits for coarse aggregate by sieve analysis, defining the percentage of material expected to pass each sieve for a given nominal size, with separate limit sets for single-size and graded material. The standard also includes requirements relating to particle shape, including flakiness and elongation, cleanliness and freedom from deleterious material, water absorption and specific gravity, and mechanical performance assessed through crushing, impact and abrasion testing. Test methods sit in the IS 2386 series.
These are general standards and technical references. For current grading information or available documentation for the material being supplied, contact OM Group with the project requirement.
20mm aggregate is used mainly as the coarse aggregate in reinforced concrete, and in specified road and drainage applications. Where sections are thin or reinforcement is congested, 10mm aggregate is generally more appropriate.
Commonly used as the coarse aggregate for conventional structural concrete, including standard grades such as M20, where member dimensions and reinforcement spacing permit it.
Standard footings and raft slabs where section depth accommodates 20mm.
Used where placement is unrestricted and a larger size is either not permitted or not preferred by the specification.
RMC plants commonly use 20mm as the principal coarse aggregate, blended in proportion with 10mm to reach a designed combined grading.
May be used in specified road and infrastructure applications alongside products such as GSB and WMM, depending on the project specification. These are distinct materials with their own requirements and are not interchangeable with 20mm aggregate.
Can be used in drainage such as French drains, soakaways and pipe surround where a clean, low-fines, open-graded aggregate is specified. Materials containing fines, such as GSB or crusher run, are not substitutes.
If your engineer or mix design has specified the aggregate size, follow that specification. Aggregate size is a design decision and nothing on this page substitutes for it.
For context, IS 456:2000 constrains the maximum nominal size of coarse aggregate against the member being cast. The limits generally applied are:
20mm is commonly suitable for conventional reinforced-concrete members when member dimensions, reinforcement spacing, cover and the approved project specification permit it. Congested reinforcement and genuinely thin sections generally require a smaller size.
One practice worth naming: replacing a specified aggregate size with 40mm simply to reduce material cost may conflict with the project specification or applicable size limitations. Blending leftover sizes on site to extend a stockpile produces an untested gradation with unpredictable water demand and workability. Final selection should follow the approved design and mix requirements, and any deliberate blending belongs in a designed mix trial.
Aggregate buyers order in different units depending on local trade practice and project documentation. In Goa and Maharashtra, brass and trips are common in the trade, while mix designs, specifications and quotations often run in cubic metres or tonnes. Converting before you enquire avoids quoting errors.
| Unit | Approximate equivalent |
|---|---|
| 1 brass | 100 cubic feet ≈ 2.83 m³ |
| 1 m³ of 20mm aggregate | ≈ 1.55 tonnes |
| 1 brass of 20mm aggregate | ≈ 4.4 tonnes |
| 1 tonne of 20mm aggregate | ≈ 0.65 m³ |
| 1 cubic foot (CFT) of 20mm aggregate | ≈ 44 kg |
If you know your requirement in one unit only, send it in that unit. OM Group can work from brass, cubic metres, tonnes or number of trips.
OM Group operates a vertical shaft impactor (VSI) stone-crushing facility at Banda Wafoli, producing multi-grade crushed stone aggregate from in-house quarried source rock. VSI crushing accelerates stone against stone rather than compressing it, and is generally associated with a more cubical particle shape than compression crushing.
OM Group operates its own transport fleet, including tippers, haulers and transit mixers, with operational bases at Kundaim and Thivim in North Goa and Sancoale in South Goa. The same fleet serves OM Group's RMC batching plants at Kundaim and Thivim, so 20mm dispatched as raw material and 20mm consumed in ready-mix concrete come from the same production.
OM Group crushes its own aggregate from its own quarried source rock. Specification questions go to the people producing the material rather than through an intermediary.
20mm is usually a scheduled, recurring requirement rather than a one-time order. Dispatch runs on OM Group's own fleet from bases in both districts.
Most RCC work needs 20mm and 10mm in proportion. Both come from the same production and can be dispatched on one order against one quotation.
Where current data exists for a requirement, OM Group provides it. Where it does not, OM Group says so rather than quoting a figure from a textbook.
40mm aggregate is generally more economical per cubic metre than 20mm because larger stone requires less cement paste. That economy applies only where 40mm is appropriate for the member being cast and permitted by the specification. Full specifications for the larger size, including 60mm for even larger-scale work, are on the 40mm aggregate page.
| 20mm Aggregate | 40mm Aggregate | |
|---|---|---|
| Nominal size | 20mm | 40mm |
| Typical applications | RCC slabs, beams, columns, footings, RMC, specified road works | Mass concrete, PCC, sub-base, large unreinforced sections |
| Reinforced concrete | Commonly used for conventional reinforced members | Requires more generous member dimensions and reinforcement spacing; suitability should be verified against the project specification and applicable IS 456:2000 limits |
| Relative paste demand | Higher than 40mm | Lower — generally more economical per m³ |
| Placement | Places through the reinforcement spacing found in conventional members | Needs greater clear spacing and section depth |
| Typical bulk density (industry estimate) | ≈ 1,550 kg/m³ | ≈ 1,450 kg/m³ |
| Project context | General building and infrastructure RCC | Foundations, mass pours, road sub-base, embankment work |
Looking for the smaller size? See 10mm aggregate, which covers thin sections and congested reinforcement and includes a full 10mm versus 20mm comparison. 20mm is commonly used for conventional RCC and is generally more economical; 10mm is used where placement or finish is the constraint. Most projects use both.
Rate depends on quantity, delivery location and schedule, so OM Group quotes against the specific requirement rather than publishing a list rate. Include the following:
| Product | 20mm Aggregate — plus any other grades or materials needed on the same project |
| Quantity | Volume or weight required |
| Unit | Brass, cubic metres, tonnes or number of trips — whichever you work in |
| Project location | Delivery destination in Goa — determines logistics and affects rate |
| Application | RCC, RMC, road works, drainage, or other |
| Grading requirement | Single-size or graded, if your specification distinguishes |
| Delivery timeline | One-time supply or a phased schedule |
| Specification requirement | Any grading information or documentation your engineer or client requires |
| Contact | Company name and the person handling procurement |
Scheduled and phased supply is normal on 20mm — share the programme rather than a single figure. Multiple materials can go on one enquiry: 20mm, 10mm, sand, GSB and RMC are quoted together. Flag documentation requirements at enquiry stage rather than after dispatch.
| Product | 20mm Aggregate |
| Category | Coarse aggregate — crushed stone |
| Nominal size | 20mm |
| Grading | Supplied according to project requirement |
| Production method | VSI crushing |
| Source | In-house quarried rock |
| Applicable standard (general reference) | IS 383:2016 — Coarse and Fine Aggregate for Concrete |
| Size selection (general reference) | IS 456:2000 — maximum nominal size limits by member |
| Test methods (general reference) | IS 2386 series |
| Grading information | On request |
| Documentation | On request, subject to what is current |
| Availability and lead time | Confirmed against project requirement |
Structural pours, government works and client-audited projects frequently require grading information for the specific material supplied. State what your engineer or client needs with your enquiry — grading data, source details, or documentation for project records — and OM Group will confirm what is currently available. Where a project requires documentation that is not currently held, OM Group will say so directly rather than supplying a generic substitute.
20mm aggregate is crushed stone graded to a nominal size of 20mm, used as a coarse aggregate in reinforced concrete. It is classified as coarse aggregate because it is retained on a 4.75mm sieve.
20mm aggregate is used for RCC slabs, beams, columns and footings, ready-mix concrete, mass concrete, and specified road and drainage applications. It is among the most widely used coarse aggregate sizes in Indian structural concrete.
20mm balances economy and placement. Larger stone generally needs less cement paste per cubic metre than smaller sizes, while remaining small enough to place through the reinforcement spacing found in conventional members.
Yes. 20mm is commonly used as the coarse aggregate for RCC slabs, beams, columns and footings where member dimensions, reinforcement spacing and the project specification permit it under IS 456:2000.
20mm nominal size is commonly used as the coarse aggregate for M20 and other conventional structural grades, subject to the approved mix design and the member being cast.
Single-size 20mm passes the 20mm sieve and is largely retained on the sieve below it. Graded 20mm contains a designed distribution of smaller sizes as well. Crushing plants generally produce single-size grades, which are blended in proportion at mix design. State which your specification requires with your enquiry.
40mm is generally more economical per cubic metre because it requires less cement paste, but it needs more generous member dimensions and reinforcement spacing, and suitability must be verified against the project specification and IS 456:2000 limits. 20mm is commonly used for conventional reinforced members.
20mm is commonly used for conventional RCC and is generally more economical; 10mm is used where placement or finish is the constraint, such as congested reinforcement and thin sections. Most projects use both. A full comparison is on the 10mm aggregate page.
1 brass is 100 cubic feet, approximately 2.83 m³. At a typical bulk density of around 1,550 kg/m³, 1 brass of 20mm aggregate is approximately 4.4 tonnes. This is an industry estimate; actual weight varies with source rock, grading and moisture.
Approximately 1.55 tonnes, based on a typical industry bulk density of around 1,550 kg/m³ for 20mm coarse aggregate. Use confirmed project documentation for billing and mix design.
Yes. OM Group can work from brass, cubic metres, tonnes or number of trips. Send the requirement in whichever unit you work in.
OM Group supplies 20mm aggregate across North and South Goa, produced at its own VSI stone-crushing facility at Banda Wafoli and delivered on OM Group transport. Request a quote on this page or contact OM Group directly.
Yes. 20mm aggregate is part of OM Group's crushed stone aggregate range, supplied to construction sites, RMC plants, road contractors and government projects across North and South Goa.
Yes. OM Group operates a VSI stone-crushing facility at Banda Wafoli producing multi-grade crushed stone aggregate from in-house quarried source rock.
Yes. OM Group supplies aggregate at project volumes on scheduled programmes and operates its own tippers and haulers for dispatch. Share the quantity, delivery location and timeline for a bulk quotation.
Rate depends on quantity, delivery location and schedule, so OM Group quotes against the specific requirement rather than publishing a list rate. Share quantity, project location and timeline for current pricing.
Availability is confirmed against the project requirement. Contact OM Group with quantity, location and timeline for current availability.
Current grading information and available documentation can be provided on request, confirmed against the material being supplied.
Yes. OM Group operates its own transport fleet with bases at Kundaim, Thivim and Sancoale, delivering across North and South Goa.
Use the Request a Quote form on this page with quantity, unit, project location, application and timeline, or contact OM Group directly by phone or WhatsApp.
Share quantity, project location and timeline, and OM Group will confirm current availability and pricing for the requirement. Brass, cubic metres, tonnes or trips — send it in whichever unit you work in. Multiple materials can be quoted together.
