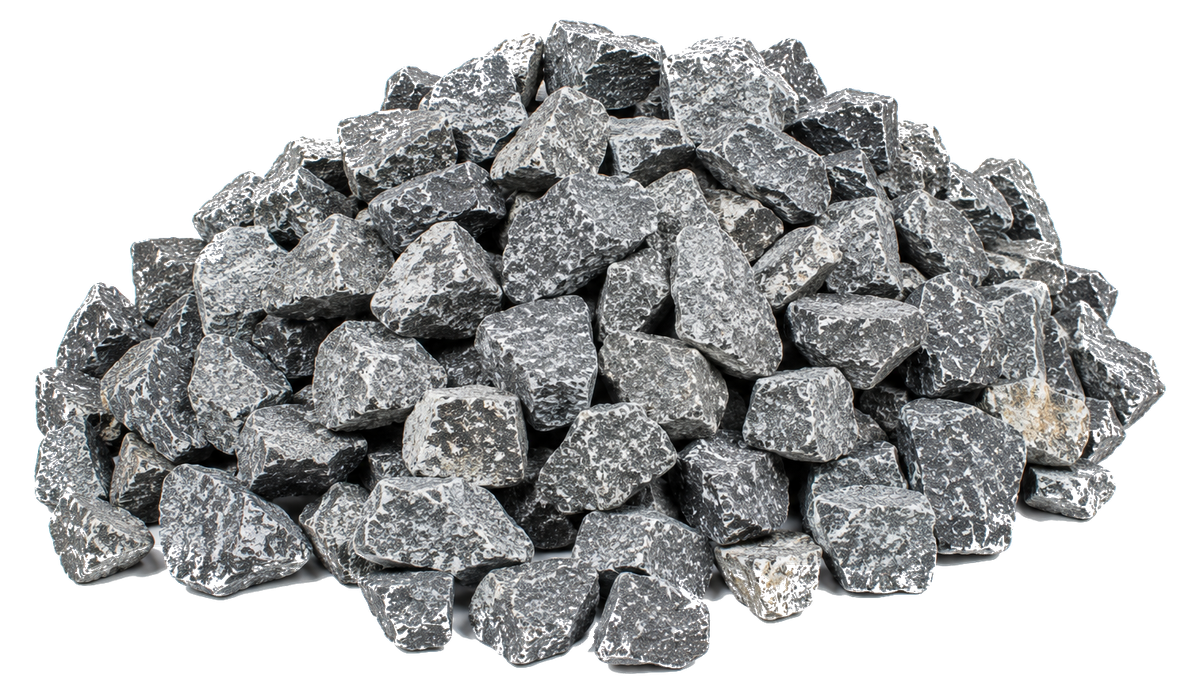

Large-size crushed stone aggregate for mass concrete, PCC, foundations and road sub-base work — supplied by OM Group across North and South Goa through its own stone-crushing operation.
Aggregate size is chosen against the section being poured, the reinforcement it has to pass, and the finish required. 40mm is the size specified when volume and economy matter more than fine placement — mass pours, sub-base and unreinforced or lightly reinforced work. OM Group produces 40mm aggregate through its own stone-crushing operation and supplies it to construction sites, RMC plants and project contractors across North and South Goa.
IS 383:2016, the Indian standard for aggregates in concrete, specifies coarse aggregate in nominal sizes of 10, 12.5, 16, 20, 40 and 63mm, as either single-size or graded material — 40mm is one of these standard nominal sizes.
The figure refers to nominal size, not a guarantee that every particle measures 40mm. Nominal size describes the sieve the bulk of the material passes, with a defined distribution above and below.
Size matters for a practical reason. Larger aggregate presents less surface area per unit volume, so it typically requires less cement paste to coat — meaning a 40mm mix generally carries a lower paste demand than an equivalent 20mm mix, which is why 40mm is generally the more economical choice per cubic metre where the specification permits it. What it gives up is placement: it needs greater clear spacing and section depth, and does not move into congested reinforcement the way smaller aggregate does.
In Indian construction trade usage, terms such as metal or blue metal are commonly used for crushed stone aggregate, and 40mm metal generally refers to this product. Terminology varies by region and application, so confirm the size specification rather than relying on trade names alone when ordering.
IS 383:2016 sets grading limits for coarse aggregate by sieve analysis, defining the percentage of material expected to pass each sieve for a given nominal size. Well-graded aggregate generally produces better workability and more consistent results than poorly graded material. 40mm is used both as a single-size aggregate and blended with smaller fractions in a graded mix, depending on the mix design and application.
Reinforced-concrete use of 40mm aggregate is governed by member dimensions and reinforcement spacing under IS 456:2000 — larger aggregate needs more generous clear spacing and section depth, so suitability should always be verified against the project specification before ordering for an RCC member. Beyond grading, coarse aggregate for structural or mass concrete is generally assessed on particle shape, cleanliness and freedom from deleterious material, water absorption, specific gravity, and mechanical performance through crushing, impact and abrasion testing, using the relevant IS 2386 methods.
IS 456:2000, Clause 5.3.1 sets the maximum aggregate size for a reinforced-concrete member as the smallest of three checks: one-quarter of the member's minimum dimension, the clear spacing between reinforcement bars minus 5mm, and the clear cover minus 5mm. Whichever of the three gives the smallest figure is the actual ceiling for that member — not the concrete grade, and not whichever aggregate happens to be in stock.
A 150mm column, 25mm cover, 20mm bars at 40mm clear spacing:
The smallest figure governs — here, 20mm. That specific column requires 20mm aggregate regardless of concrete grade; 40mm would not meet its own geometry. Run this same check against your own member before specifying 40mm.
This example is illustrative only — actual aggregate selection must follow the structural drawings, concrete mix design and project specification prepared by the responsible engineer. 40mm aggregate's natural home is mass concrete and other large, less congested pours, which is precisely the domain IS 383:2016 Table 8 addresses for mass-concrete aggregate sizing.
40mm aggregate is used where the section is large enough and the reinforcement open enough to accommodate it — mass concrete, PCC, sub-base and foundation work. 40mm is not a general substitute for 20mm: for standard slabs, beams and columns with conventional reinforcement, 20mm is typically the appropriate choice. Many projects use both across different elements.
Large unreinforced or lightly reinforced pours where economy and bulk matter more than fine placement.
Heavy foundation work, footings and large structural bases where section depth accommodates larger aggregate.
Sub-base layers and embankment fill where a large, angular crushed material is specified.
Large-void drainage and filter layers where particle size supports free water movement.
Reinforced members with generous section depth and reinforcement spacing, verified against IS 456:2000 limits.
Bulk fill and structural work across road, industrial and site-development projects.
OM Group operates a vertical shaft impactor (VSI) stone-crushing facility at Banda Wafoli, producing multi-grade crushed stone aggregate from in-house quarried source rock, including large-size grades such as 40mm alongside the finer fractions used in RCC work.
OM Group operates its own transport fleet, including tippers, haulers and transit mixers, with operational bases at Kundaim and Thivim in North Goa and Sancoale in South Goa. The same fleet serves OM Group's RMC batching plants, so aggregate dispatch and concrete delivery are coordinated within one operation rather than across separate vendors.
OM Group crushes its own aggregate from its own quarried source rock. Specification questions go to the people producing the material rather than through an intermediary.
Delivery runs on OM Group's own fleet from bases in both districts, so scheduling does not depend on a third-party transporter's availability.
40mm sits alongside other aggregate grades, GSB, boulders and ready-mix concrete. Multi-material requirements can be quoted and coordinated together.
Where current data exists for a requirement, OM Group provides it. Where it does not, OM Group says so rather than quoting a figure from a textbook.
40mm aggregate is generally more economical per cubic metre than 20mm because larger stone requires less cement paste. That economy applies only where 40mm is appropriate for the member being cast and permitted by the specification. Full specifications for the smaller size are on the 20mm aggregate page.
| 40mm Aggregate | 20mm Aggregate | |
|---|---|---|
| Nominal size | 40mm | 20mm |
| Typical applications | Mass concrete, PCC, sub-base, large unreinforced sections | RCC slabs, beams, columns, footings, RMC, specified road works |
| Reinforced concrete | Requires more generous member dimensions and reinforcement spacing; suitability should be verified against the project specification and applicable IS 456:2000 limits | Commonly used for conventional reinforced members |
| Relative paste demand | Lower — generally more economical per m³ | Higher than 40mm |
| Placement | Needs greater clear spacing and section depth | Places through the reinforcement spacing found in conventional members |
| Typical bulk density (industry estimate) | ≈ 1,450 kg/m³ | ≈ 1,550 kg/m³ |
| Project context | Foundations, mass pours, road sub-base, embankment work | General building and infrastructure RCC |
40mm and 60mm are both larger nominal sizes used in mass concrete and heavy civil work; the specific size is set by the mix design and project specification, not a universal ranking. Full specifications for the larger size are on the 60mm aggregate page. Some projects call for both sizes together — see the 40mm + 60mm mix below.
| 40mm Aggregate | 60mm Aggregate | |
|---|---|---|
| Nominal size | 40mm | 60mm |
| Typical applications | Mass concrete, PCC, foundations, road sub-base | Large mass concrete, heavy foundations, rip-rap and pitching-adjacent works |
| Reinforced concrete | Only where member dimensions and spacing permit, per IS 456:2000 Clause 5.3.1 | Rarely used in reinforced sections — generally mass/unreinforced work |
| Selection basis | Mix design and project specification | Mix design and project specification |
| Combined requirement | A 40mm + 60mm blend can be supplied for a project that specifies both — see below | |
Some projects specify a combination of larger aggregate sizes rather than a single nominal size. OM Group can discuss combined 40mm and 60mm aggregate requirements for these projects — share the required quantity, application, delivery location and project specification, and OM Group's team can confirm the appropriate supply configuration.
No fixed blend ratio is published. The split between 40mm and 60mm is set by your project's specification and mix design, not by a standard OM Group ratio — it is confirmed against the specific requirement at enquiry.
40mm aggregate is a single coarse-aggregate size; GSB (Granular Sub-Base) is a blended, graded sub-base material meeting a sieve/grading curve under MoRTH Clause 401. A 40mm fraction can be one input into a GSB blend, but 40mm aggregate on its own does not meet Clause 401's grading requirement and is not GSB. See the GSB page for the full specification.
Wet Mix Macadam (WMM) is a plant-mixed, moisture-conditioned base-course material under MoRTH Clause 406, produced by blending multiple aggregate fractions with water to a specified grading. 40mm aggregate is one of the size fractions that can feed into a WMM blend, but a single 40mm fraction is not WMM on its own. See the WMM page for what goes into the mix.
40mm aggregate is processed, crushed and screened to a sized fraction. Boulders are substantially larger individual stones, generally used whole rather than as a sized aggregate fraction, in applications such as pitching, gabion work and soling. They are not interchangeable products. See the Boulders page for boulder types and applications.
If your engineer or mix design has specified the aggregate size, follow that specification. Aggregate size is a design decision and nothing on this page substitutes for it.
If the requirement is still being assessed, these are the questions that usually determine it, and the ones worth putting to your engineer:
Share the application and project details with your enquiry and OM Group can discuss the material requirement and quantities with you.
Rate depends on quantity, delivery location and schedule, so OM Group quotes against the specific requirement rather than publishing a list rate. Include the following:
| Product | 40mm Aggregate — plus any other grades or materials needed on the same project |
| Quantity | Volume or weight required |
| Unit | Cubic metres, tonnes or number of trips |
| Project location | Delivery destination in Goa — determines logistics and affects rate |
| Application | Mass concrete, PCC, foundation, sub-base, or other |
| Delivery timeline | One-time supply or a phased schedule |
| Specification requirement | Any grading information or documentation your engineer or client requires |
| Contact | Company name and the person handling procurement |
Phased quantities are quoted and dispatched differently from a single load — flag the schedule upfront to avoid requoting later. Multiple materials can go on one enquiry. If quantity is not yet fixed, share the application and approximate scope and OM Group can work from that.
| Product | 40mm Aggregate |
| Category | Coarse aggregate — crushed stone |
| Nominal size | 40mm |
| Production method | VSI crushing |
| Source | In-house quarried rock |
| Applicable standard (general reference) | IS 383:2016 — Coarse and Fine Aggregate for Concrete |
| Applicable test methods (general reference) | IS 2386 series — sieve analysis, water absorption, specific gravity, flakiness and elongation, crushing, impact and abrasion |
| Grading information | On request |
| Test documentation | On request, subject to what is current |
| Availability and lead time | Confirmed against project requirement |
40mm aggregate is crushed stone graded to a nominal size of 40mm, used as the coarse aggregate component in mass concrete, PCC and sub-base work. It is one of the standard coarse-aggregate nominal sizes under IS 383:2016.
40mm aggregate is used in mass concrete, PCC, foundations, road sub-base, embankment work and drainage layers, and in reinforced sections with generous member dimensions and reinforcement spacing, subject to IS 456:2000 limits.
In Indian construction trade usage, "metal" or "blue metal" commonly refers to crushed stone aggregate generally, and "40mm metal" typically refers to this product. Confirm the size specification rather than relying on trade names alone.
Yes, where the member has sufficient section depth and reinforcement clearance — this must be verified against the project specification and IS 456:2000 aggregate-size limits. For conventional reinforced members, 20mm is typically the default.
40mm is generally more economical per cubic metre because it requires less cement paste, and is used for mass concrete, PCC, sub-base and large unreinforced sections. 20mm is the typical default for conventional RCC slabs, beams and columns. Suitability for a given member is set by the specification, not by economy alone.
40mm and similar large crushed fractions are commonly used in road sub-base and embankment work, subject to the project's grading and specification requirement.
OM Group supplies 40mm aggregate across North and South Goa, produced at its own VSI stone-crushing facility at Banda Wafoli and delivered on OM Group transport. Request a quote on this page or contact OM Group directly.
Yes. 40mm aggregate is part of OM Group's crushed stone aggregate range, supplied to construction sites, RMC plants and project contractors across North and South Goa.
Yes. OM Group operates a VSI stone-crushing facility at Banda Wafoli producing multi-grade crushed stone aggregate, including 40mm, from in-house quarried source rock.
Yes. OM Group supplies aggregate at project volumes and operates its own tippers and haulers for dispatch. Share the quantity, delivery location and timeline for a bulk quotation.
Rate depends on quantity, delivery location and schedule, so OM Group quotes against the specific requirement rather than publishing a list rate. Share quantity, project location and timeline for current pricing.
Availability is confirmed against the project requirement. Contact OM Group with quantity, location and timeline for current availability.
Use the Request a Quote form on this page with quantity, project location, application and timeline, or contact OM Group directly by phone or WhatsApp.
Current grading information and available documentation can be provided on request. Specification data is confirmed against the material being supplied rather than published as a fixed table.
Yes. OM Group operates its own transport fleet with bases at Kundaim, Thivim and Sancoale, delivering across North and South Goa.
Quantity and unit, project location, intended application, delivery timeline, any specification or documentation requirements, and company contact details.
Both are larger nominal sizes used in mass concrete and heavy civil work; the specific size is set by the mix design and project specification rather than a universal ranking. Some projects specify both sizes together as a combined 40mm + 60mm requirement.
Yes, as a project-specific combined requirement. Share the required quantity, application and specification, and OM Group's team can confirm the appropriate supply configuration. No fixed blend ratio is published.
There is no fixed ratio. The blend between 40mm and 60mm is determined by your project's specification and mix design, and confirmed with OM Group at enquiry.
No. 40mm aggregate is a single coarse-aggregate size; GSB (Granular Sub-Base) is a blended, graded sub-base material meeting a sieve curve under MoRTH Clause 401. A 40mm fraction can be one input into a GSB blend, but is not GSB on its own.
No. Wet Mix Macadam (WMM) is a plant-mixed, moisture-conditioned base-course material under MoRTH Clause 406, blended from multiple aggregate fractions. 40mm aggregate can be one input into that blend, but is a distinct product on its own.
No. 40mm aggregate is processed, crushed and screened to a sized fraction. Boulders are substantially larger individual stones, generally used whole in applications such as pitching, gabion work and soling.
Share quantity, project location and timeline, and OM Group will confirm current availability and pricing for the requirement. Multiple materials can be quoted together.
